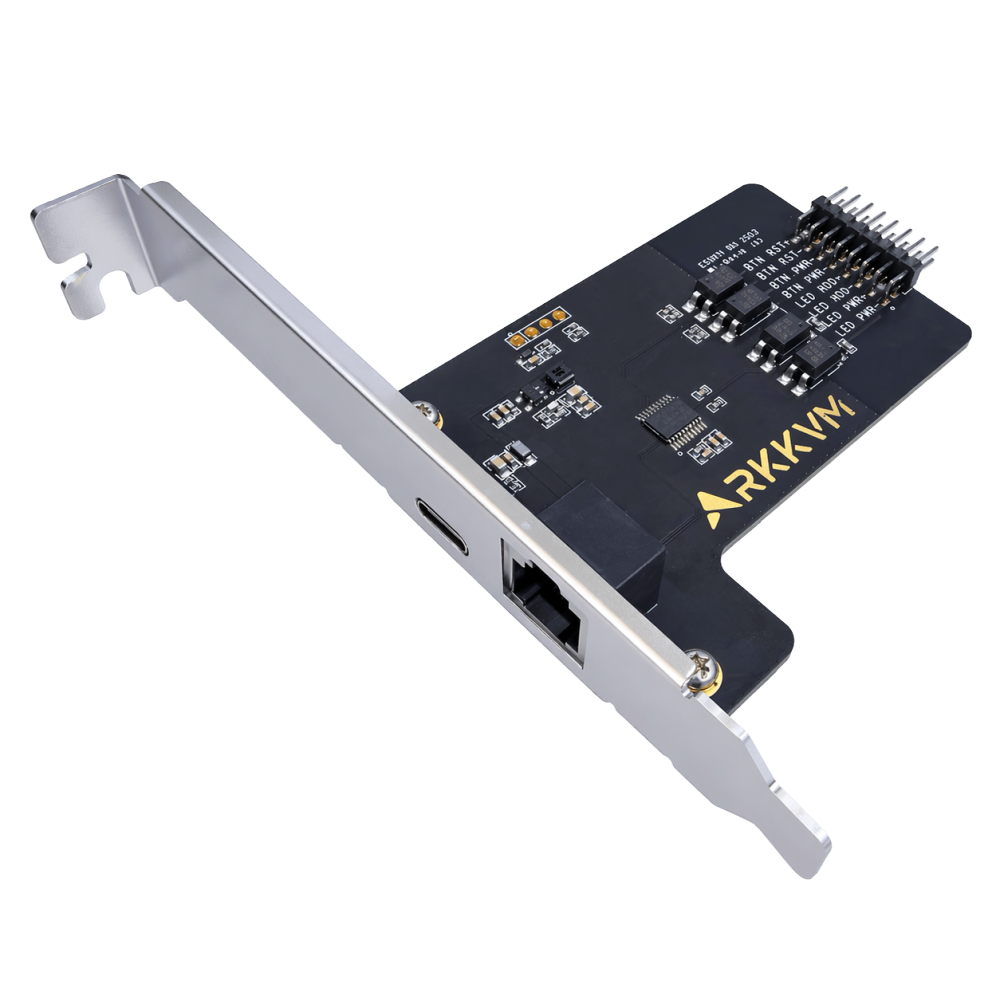

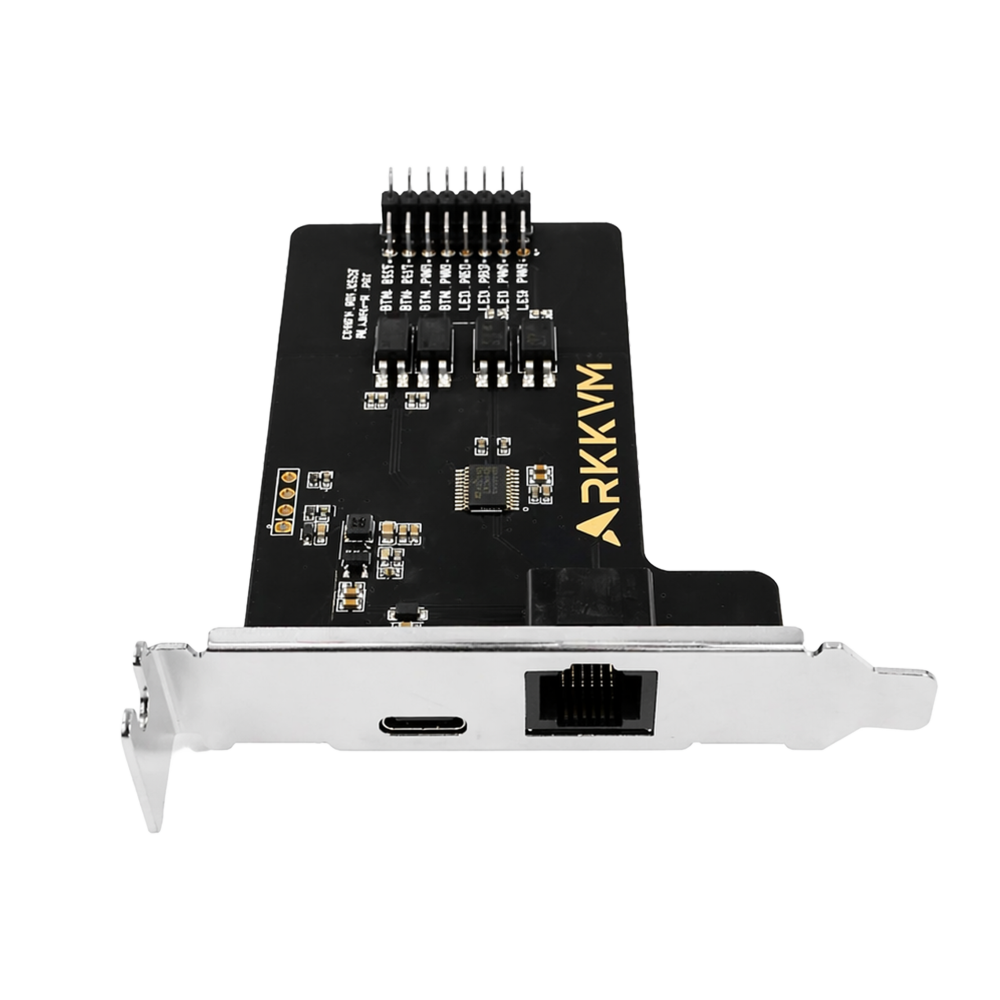

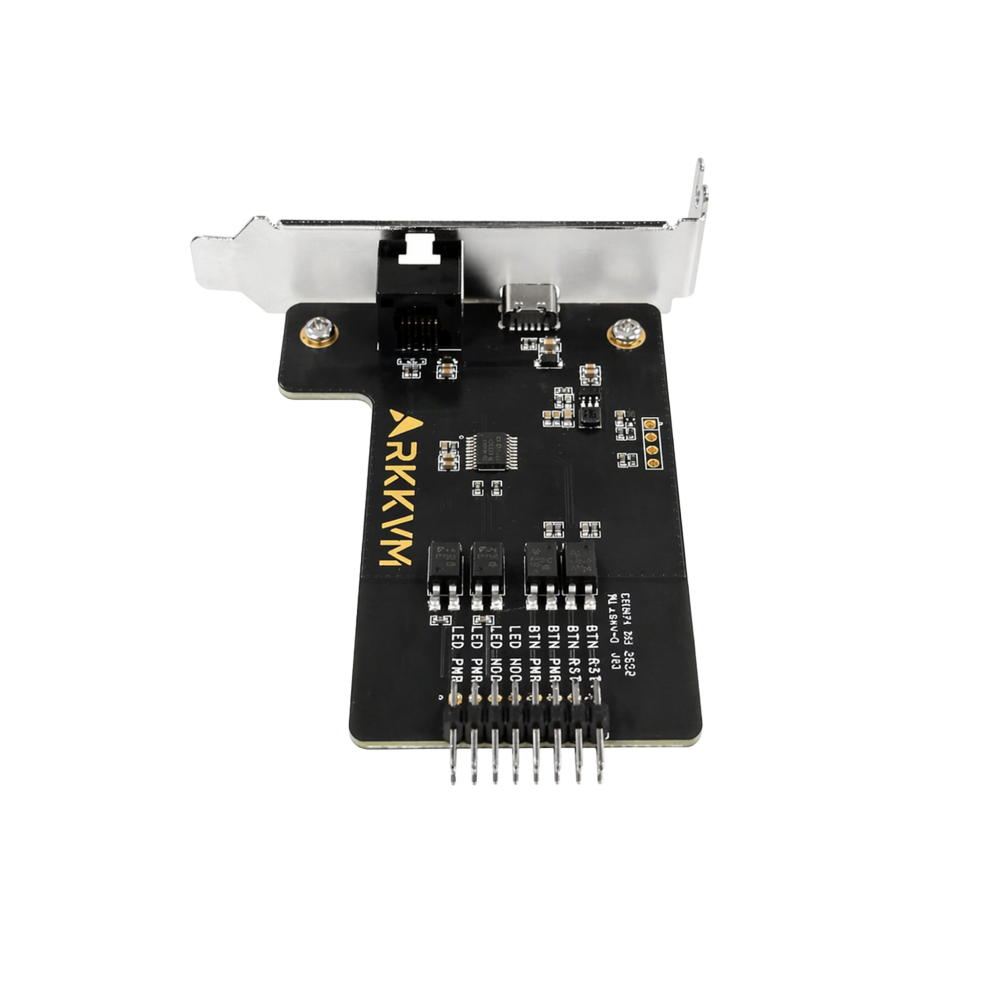

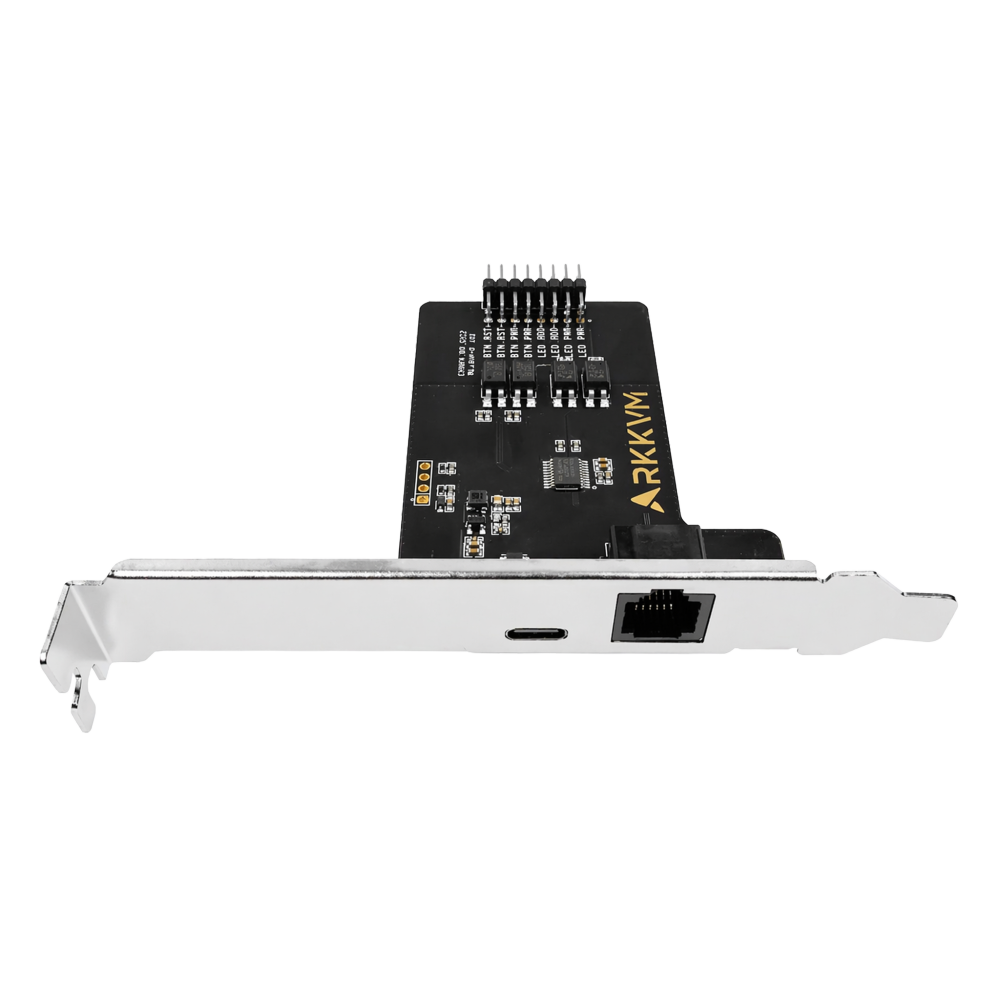

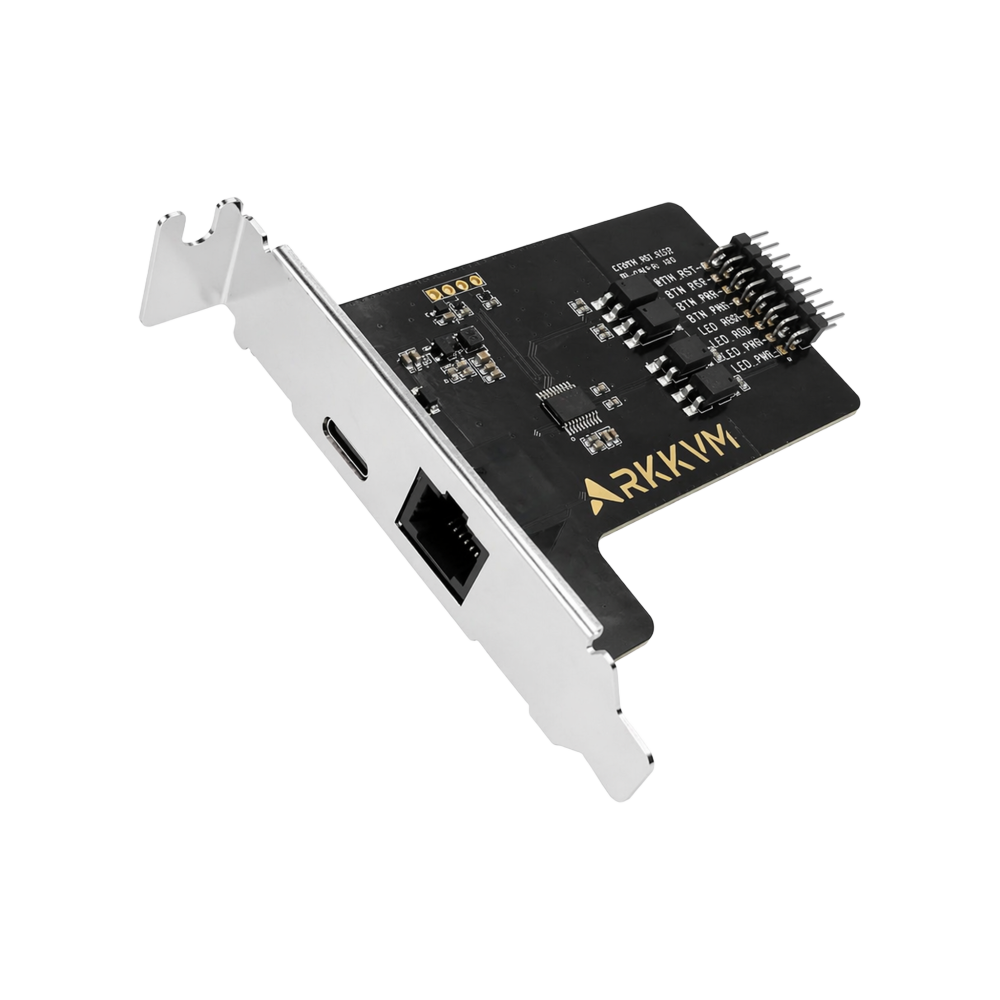

ArkKVM ATX Remote Power Board: Bi-directional 5V Power (RJ12), L-Shape Design for Better Clearance, Remote Power/Reset for PC/Server & Status Monitoring (PWR/HDD).
With the included RJ12 ATX Power Control Board, ArkKVM lets you remotely power on, shut down, or reboot your desktop PC/Server — just like pressing the power button in person.
It supports flexible power delivery:
-
- Connect a 5V USB-C power source to power both the ATX board and ArkKVM through the included RJ12 cable
- Or power the ATX board directly from ArkKVM via the same RJ12 cable

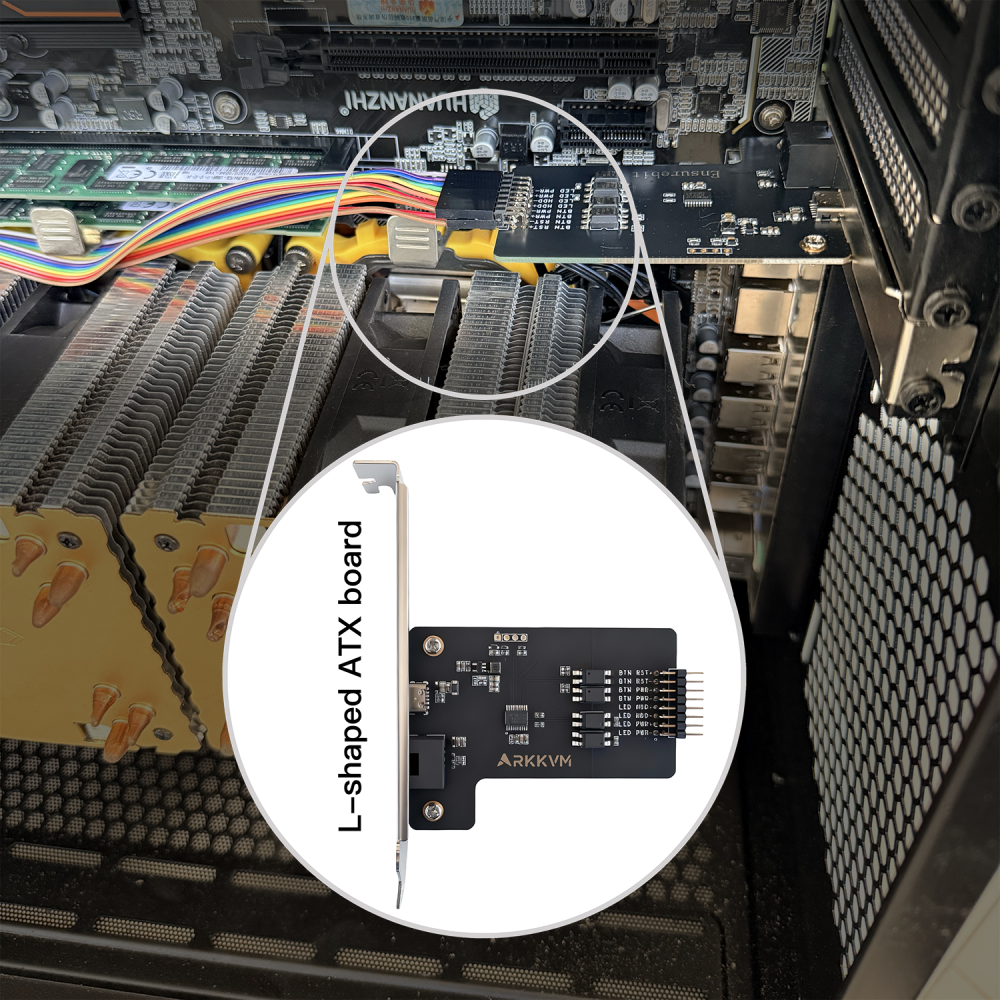

Conflict-Minimized L-Shape Design provides better clearance above the motherboard surface around the ATX connection area. This significantly reduces the chance of interference with nearby capacitors or large components compared to standard rectangular designs, making it ideal for compact builds.
Includes both full-height and low-profile PCI brackets for clean cable routing through your PC case. It uses a rear PCI slot opening, but does not connect to your motherboard’s PCIe interface.
Each motherboard connection uses dual headers:
-
- One connects to ArkKVM for remote power control
- The other preserves your original case power/reset buttons
This means both can stay connected at the same time — no rewiring trade-offs.
